PISTON SEALS

The piston seal is responsible for a system’s mechanical function. The use of piston seals in cylinders facilitates leak tightness during every stroke and traction movement. Regardless of whether it is single or double acting, the piston seal is the “workhorse” of all seals. Due to continuously increasing requirements in the area of hydraulics and pneumatics the diversity of shapes and sizes is immense in this area. Only in the mechanical seal sector the combination of geometry and the highly developed materials continuously make new options possible.

The following factors are important for the selection of this seal:

  • Single or double action sealing system
  • Space requirement
  • Pressure load and/or gap width
  • Sliding speed
  • General system type (press, construction machinery, industrial cylinder etc.)
  • Open or closed installation space
  • Temperature and/or medium (important for selection of material)
Wipers 3
150x80 87
min.Temp max.Temp max. Speed max. Pressure Material
– 20* C
115° C
max.0.4m/s
max.400bar
HPU 94*

– 20* C
115* C
max.0.4m/s
max.400bar
HPU 55* D

– 20* C
110* C
max.0.5m/s
max.400bar
LT-PU 94*

-50°C
110° C
max.0.4m/s
max.400bar
LT-PU 94*

150x80 88
min.Temp max.Temp max. Speed max. Pressure Material
– 30* C
110° C
max.0,5m/s
max. 160bar
NBR 85*

– 20* C
150* C
max.0,5m/s
max. 160bar
H-NBR 85*

– 20* C
220* C
max.0,5m/s
max. 160bar
FPM 82*

– 45* C
130° C
max.0,5m/s
max. 160bar
EPDM 85*

– 60* C
200* C
max.0,3m/s
max.120bar
MVO 85*


SWK101

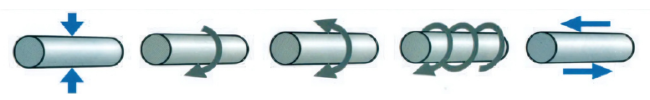

650x100 15 1
  • Primary Application
  • Application Limits
  • Not applicable
150x80 89
min.Temp max.Temp max. Speed max. Pressure Material
– 20* C
115° C
max.0.5m/s
max.400bar
HPU 94*
POM/PTFE/PEEK
– 20* C
115* C
max.0.5m/s
max.400bar
HPU 55* D
POM/PTFE/PEEK
– 20* C
110* C
max.0.5m/s
max.400bar
SL-PU 94*
POM/PTFE/PEEK
– 50° C
110° C
max.0.5m/s
max.400bar
LT-PU 94*
POM/PTFE/PEEK
150x80 90
min.Temp max.Temp max. Speed max. Pressure Material
– 30* C
110° C
max.0,5m/s
max.250bar
NBR 85*
POM/PTFE/PEEK
– 20* C
150* C
max.0,5m/s
max.250bar
H-NBR 85*
POM/PTFE/PEEK
– 20* C
220* C
max.0,5m/s
max.250bar
FPM 82*
POM/PTFE/PEEK
– 45* C
130° C
max.0,5m/s
max.250bar
EPDM 85*
POM/PTFE/PEEK
– 60* C
200* C
max.0,4m/s
max.250bar
MVQ 85*
POM/PTFE/PEEK

SWK102

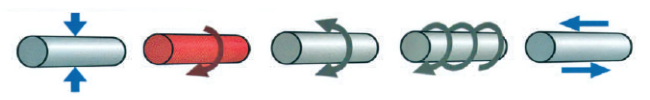

650x100 16 1
  • Primary Application
  • Application Limits
  • Not applicable
150x80 91
min.Temp max.Temp max. Speed max. Pressure Material / Case
– 20* C
115° C
max.0.5m/s
max.400bar
HPU 94*
POM/PTFE/PEEK
– 20* C
115* C
max.0.5m/s
max.400bar
HPU 55* D
POM/PTFE/PEEK
– 20* C
110* C
max.0.5m/s
max.400bar
SL-PU 94*
POM/PTFE/PEEK
– 50° C
110° C
max.0.5m/s
max.400bar
LT-PU 94*
POM/PTFE/PEEK
150x80 92
min.Temp max.Temp max. Speed max. Pressure Material / Case
– 30* C
110° C
max.0,5m/s
max.250bar
NBR 85*
POM/PTFE/PEEK
– 20* C
150* C
max.0,5m/s
max.250bar
H-NBR 85*
POM/PTFE/PEEK
– 20* C
220* C
max.0,5m/s
max.250bar
FPM 82*
POM/PTFE/PEEK
– 45* C
130° C
max.0,5m/s
max.250bar
EPDM 85*
POM/PTFE/PEEK
– 60* C
200* C
max.0,4m/s
max.250bar
MVQ 85*
POM/PTFE/PEEK

SWK102-R

650x100 16 2
  • Primary Application
  • Application Limits
  • Not applicable
150x80 93
min.Temp max.Temp max. Speed max. Pressure Material
– 20* C
115° C
max.0.4m/s
max.400bar
HPU 94*
NBR70/FPM75
– 20* C
115* C
max.0.4m/s
max.400bar
HPU 55* D
NBR70/FPM75
– 20* C
110* C
max.0.7m/s
max.400bar
SL-PU 94*
NBR70/FPM75
– 50° C
110° C
max.0.4m/s
max.400bar
LT-PU 94*
NBR70/FPM75
150x80 94
min.Temp max.Temp max. Speed max. Pressure Material
– 30* C
110° C
max.0,5m/s
max.160bar
NBR 85*
NBR70/FPM75
– 20* C
150* C
max.0,5m/s
max.160bar
H-NBR 85*
NBR70/FPM75
– 20* C
220* C
max.0,5m/s
max.160bar
FPM 82*
NBR70/FPM75
– 45* C
130° C
max.0,5m/s
max.160bar
EPDM 85*
NBR70/FPM75
– 60* C
200* C
max.0,3m/s
max.120bar
MVQ 85*
NBR70/FPM75

SWK103

650x100 17
  • Primary Application
  • Application Limits
  • Not applicable
150x80 95
min.Temp max.Temp max. Speed max. Pressure Material
– 20* C
115° C
max.0.5m/s
max.500bar
HPU 94*
POM/PTFE/PEEK
– 20* C
115* C
max.0.5m/s
max.500bar
HPU 55* D
POM/PTFE/PEEK
– 20* C
110* C
max.0.7m/s
max.500bar
SL-PU 94*
POM/PTFE/PEEK
– 50° C
110° C
max.0.5m/s
max.500bar
LT-PU 94*
POM/PTFE/PEEK
150x80 2 2
min.Temp max.Temp max. Speed max. Pressure Material
– 30* C
110° C
max.0,5m/s
max.200bar
NBR 85*
NBR70/FPM75
– 20* C
150* C
max.0,5m/s
max.200bar
H-NBR 85*
NBR70/FPM75
– 20* C
220* C
max.0,5m/s
max.200bar
FPM 82*
NBR70/FPM75
– 45* C
130° C
max.0,5m/s
max.200bar
EPDM 85*
NBR70/FPM75
– 60* C
200* C
max.0,4m/s
max.200bar
MVQ 85*
NBR70/FPM75

SWK104

650x100 17
  • Primary Application
  • Application Limits
  • Not applicable
150x80 3 2
min.Temp max.Temp max. Speed max. Pressure Material / Case
– 20* C
115° C
max.0.5m/s
max.500bar
HPU 94*
POM/PTFE/PEEK
– 20* C
115* C
max.0.5m/s
max.500bar
HPU 55* D
POM/PTFE/PEEK
– 20* C
110* C
max.0.7m/s
max.500bar
SL-PU 94*
POM/PTFE/PEEK
– 50° C
110° C
max.0.5m/s
max.500bar
LT-PU 94*
POM/PTFE/PEEK
150x80 96
min.Temp max.Temp max. Speed max. Pressure Material / Case
– 30* C
110° C
max.0,5m/s
max.200bar
NBR 85*
POM/PTFE/PEEK
– 20* C
150* C
max.0,5m/s
max.200bar
H-NBR 85*
POM/PTFE/PEEK
– 20* C
220* C
max.0,5m/s
max.200bar
FPM 82*
POM/PTFE/PEEK
– 45* C
130° C
max.0,5m/s
max.200bar
EPDM 85*
POM/PTFE/PEEK
– 60* C
200* C
max.0,4m/s
max.200bar
MVQ 85*
POM/PTFE/PEEK

SWK104-R

650x100 17
  • Primary Application
  • Application Limits
  • Not applicable
150x80 97
min.Temp max.Temp max. Speed max. Pressure Material
– 20* C
115° C
max.0.1 m/s
max.25bar
HPU 94*

– 20* C
115* C
max.0.1 m/s
max.25bar
HPU 55* D

– 20* C
110* C
max.0.2m/s
max.25bar
SL-PU 94*

– 50° C
110° C
max.0.1 m/s
max.25bar
LT-PU 94*

150x80 98
min.Temp max.Temp max. Speed max. Pressure Material
– 30* C
110° C
max.1m/s
max.25bar
NBR 85*

– 20* C
150* C
max.1m/s
max.25bar
H-NBR 85*

– 20* C
220* C
max.1m/s
max.25bar
FPM 82*

– 45* C
130° C
max.1m/s
max.25bar
EPDM 85*

– 60* C
200* C
max.0,5m/s
max.25bar
MVQ 85*


SWK105

1
  • Primary Application
  • Application Limits
  • Not applicable
150x80 99
min.Temp max.Temp max. Speed max. Pressure Material
– 20* C
115° C
max.1m/s
max.25bar
HPU 94*

– 20* C
115* C
max.1m/s
max.25bar
HPU 55* D

– 20* C
110* C
max.1m/s
max.25bar
SL-PU 94*

– 50° C
110° C
max.1m/s
max.25bar
LT-PU 94*

150x80 100
min.Temp max.Temp max. Speed max. Pressure Material
– 30* C
110° C
max.1m/s
max.25bar
NBR 85*

– 20* C
150* C
max.1m/s
max.25bar
H-NBR 85*

– 20* C
220* C
max.1m/s
max.25bar
FPM 82*

– 45* C
130° C
max.1m/s
max.25bar
EPDM 85*

– 60* C
200* C
max.0,5m/s
max.25bar
MVQ 85*


SWK205

1
  • Primary Application
  • Application Limits
  • Not applicable
150x80 2025 04 22T173234.911
min.Temp max.Temp max. Speed max. Pressure Material
– 20* C
115° C
max.0.5m/s
max.400bar
HPU 94*
NBR70°/FPM75
– 20* C
115* C
max.0.5m/s
max.400bar
HPU 55* D
NBR70°/FPM75
– 20* C
110* C
max.0.7m/s
max.400bar
SL-PU 94*
NBR70°/FPM75
– 50° C
110° C
max.0.5m/s
max.400bar
LT-PU 94*
NBR70°/FPM75
150x80 2025 04 22T173543.363
min.Temp max.Temp max. Speed max. Pressure Material
– 30* C
110° C
max.0,5m/s
max.160bar
NBR 85*
NBR70/FPM75
– 20* C
150* C
max.0,5m/s
max.160bar
H-NBR 85*
NBR70/FPM75
– 20* C
220* C
max.0,5m/s
max.160bar
FPM 82*
NBR70/FPM75
– 45* C
130° C
max.0,5m/s
max.160bar
EPDM 85*
NBR70/FPM75
– 60* C
200* C
max.0,2m/s
max.120bar
MVQ 85*
NBR70/FPM75

SWK107

650x100 17
  • Primary Application
  • Application Limits
  • Not applicable
150x80 2025 04 22T174045.672
min.Temp max.Temp max. Speed max. Pressure Material
200°C
260°C
max.10m/s
max.400bar
PTFE pure
NBR70°/FPM75
200°C
260°C
max.10m/s
max.400bar
PTFE 1 glass
NBR70°/FPM75
200°C
260°C
max.10m/s
max.400bar
PTFE 2 bronze
NBR70°/FPM75
200°C
260°C
max.10m/s
max.400bar
PTFE carbone
NBR70°/FPM75
min.Temp max.Temp max. Speed max. Pressure Material
– 200* C
260° C
max.10m/s
max.400bar
PTFE D05turqu
NBR70°/FPM75
– 200* C
260° C
max.10m/s
max.400bar
PTFE D05glass
NBR70°/FPM75
– 200* C
260° C
max.10m/s
max.400bar
PTFE graphite
NBR70°/FPM75
– 200* C
260° C
max.10m/s
max.400bar
PTFE ekonol
NBR70°/FPM75
– 200* C
260° C
max.10m/s
max.400bar
PTFE 25%glass
NBR70°/FPM75

SWK108

650x100 18
  • Primary Application
  • Application Limits
  • Not applicable
150x80 2025 04 22T174404.169
min.Temp max.Temp max. Speed max. Pressure Material
– 20* C
115° C
max.0.5m/s
max.400bar
HPU 94*
POM/PTFE/PEEK
– 20* C
115* C
max.0.5m/s
max.400bar
HPU 55* D
POM/PTFE/PEEK
– 20* C
110* C
max.0.5m/s
max.400bar
SL-PU 94*
POM/PTFE/PEEK
– 50° C
110° C
max.0.5m/s
max.400bar
LT-PU 94*
POM/PTFE/PEEK
min.Temp max.Temp max. Speed max. Pressure Material
– 30* C
110° C
max.000m/s
max.000bar
NBR 85*

– 20* C
150* C
max.000m/s
max.000bar
H-NBR 85*

– 20* C
220* C
max.000m/s
max.000bar
FPM 82*

– 45* C
130° C
max.000m/s
max.000bar
EPDM 85*

– 60* C
200* C
max.000m/s
max.000bar
MVQ 85*


SWK109

650x100 18
  • Primary Application
  • Application Limits
  • Not applicable
150x80 2025 04 22T174759.406
min.Temp max.Temp max. Speed max. Pressure Material
– 20* C
115° C
max.0.4m/s
max.400bar
HPU 94*
POM/PTFE/PEEK
– 20* C
115* C
max.0.4m/s
max.400bar
HPU 55* D
POM/PTFE/PEEK
– 20* C
110* C
max.0.5m/s
max.400bar
SL-PU 94*
POM/PTFE/PEEK
– 50° C
110° C
max.0.4m/s
max.400bar
LT-PU 94*
POM/PTFE/PEEK
min.Temp max.Temp max. Speed max. Pressure Material
– 30* C
110° C
max.000m/s
max.000bar
NBR 85*

– 20* C
150* C
max.000m/s
max.000bar
H-NBR 85*

– 20* C
220* C
max.000m/s
max.000bar
FPM 82*

– 45* C
130° C
max.000m/s
max.000bar
EPDM 85*

– 60* C
200* C
max.000m/s
max.000bar
MVQ 85*


SWK109D

650x100 19
  • Primary Application
  • Application Limits
  • Not applicable
150x80 2025 04 22T175127.003
min.Temp max.Temp max. Speed max. Pressure Material
– 20* C
115° C
max.0.5m/s
max.700bar
HPU 94*
POM/PTFE/PEEK
– 20* C
115* C
max.0.5m/s
max.700bar
HPU 55* D
POM/PTFE/PEEK
– 20* C
110* C
max.0.7m/s
max.700bar
SL-PU 94*
POM/PTFE/PEEK
– 50° C
110° C
max.0.4m/s
max.700bar
LT-PU 94*
POM/PTFE/PEEK
min.Temp max.Temp max. Speed max. Pressure Material
– 30* C
110° C
max.000m/s
max.000bar
NBR 85*

– 20* C
150* C
max.000m/s
max.000bar
H-NBR 85*

– 20* C
220* C
max.000m/s
max.000bar
FPM 82*

– 45* C
130° C
max.000m/s
max.000bar
EPDM 85*

– 60* C
200* C
max.000m/s
max.000bar
MVQ 85*


SWK109H

650x100 19 1
  • Primary Application
  • Application Limits
  • Not applicable
150x80 2025 04 23T125700.631
min.Temp max.Temp max. Speed max. Pressure Material
– 20* C
115° C
max.0.5m/s
max.400bar
HPU 94*
POM/PTFE/PEEK
– 20* C
115* C
max.0.5m/s
max.400bar
HPU 55* D
POM/PTFE/PEEK
– 20* C
110* C
max.0.7m/s
max.400bar
SL-PU 94*
POM/PTFE/PEEK
– 50° C
110° C
max.0.5m/s
max.400bar
LT-PU 94*
POM/PTFE/PEEK
min.Temp max.Temp max. Speed max. Pressure Material
– 30* C
110° C
max.000m/s
max.000bar
NBR 85*

– 20* C
150* C
max.000m/s
max.000bar
H-NBR 85*

– 20* C
220* C
max.000m/s
max.000bar
FPM 82*

– 45* C
130° C
max.000m/s
max.000bar
EPDM 85*

– 60* C
200* C
max.000m/s
max.000bar
MVQ 85*


SWK109N

650x100 19 1
  • Primary Application
  • Application Limits
  • Not applicable
150x80 - 2025-04-23T130031.315
min.Temp max.Temp max. Speed max. Pressure Material
– 20*C
115*C
max.0.5m/s
max.500bar
HPU 94
POM/PTFE/PEEK
– 20*C
115*C
max.0.5m/s
max.500bar
HPU 55’D
POM/PTFE/PEEK
– 20*C
110*C
max.0.7m/s
max.500bar
SL-PU 94
POM/PTFE/PEEK
– 50*C
110*C
max.0.5m/s
max.500bar
LT-PU 94
POM/PTFE/PEEK
150x80 - 2025-04-23T130344.195
min.Temp max.Temp max. Speed max. Pressure Material
– 30*C
110*C
max.0.4m/s
max.160bar
NBR 85
POM/PTFE/PEEK
– 20*C
150*C
max.0.4m/s
max.160bar
H-NBR 85
POM/PTFE/PEEK
– 20*C
220*C
max.0.4m/s
max.160bar
FPM 82°
POM/PTFE/PEEK
– 45*C
130*C
max.0.4m/s
max.160bar
EPDM 85
POM/PTFE/PEEK
– 60*C
200*C
max.0.4m/s
max.120bar
MVQ 85
POM/PTFE/PEEK

SWK110/112

650x100 20
  • Primary Application
  • Application Limits
  • Not applicable
150x80 - 2025-04-23T130757.959
min.Temp max.Temp max. Speed max. Pressure Material
20°C
115°C
max.0.4m/s
max. 160bar
HPU 94

20°C
115°C
max.0.4m/s
max. 160bar
HPU 55°D

20°C
110°C
max.0.5m/s
max. 160bar
SL-PU 94″

50°C
110°C
max.0.4m/s
max. 160bar
LT-PU 94

150x80 - 2025-04-23T131011.091
min.Temp max.Temp max. Speed max. Pressure Material
30°C
110°C
max.0,4m/s
max.120bar
NBR 85

20°C
150°C
max.10m/s
max.120bar
H-NBR 85

20°C
220°C
max.0,4m/s
max.120bar
FPM 82

45°C
130°C
max.0,4m/s
max.120bar
EPDM 85

60°C
200°C
max.0,4m/s
max.120bar
MVQ 85


SWK116

650x100 21
  • Primary Application
  • Application Limits
  • Not applicable
150x80 - 2025-04-23T131604.503
min.Temp max.Temp max. Speed max. Pressure Material
– 20*C
115*C
max.0.4m/s
max.160bar
HPU 94

– 20*C
115*C
max.0.4m/s
max.160bar
HPU 55 D

– 20*C
110*C
max.0.5m/s
max.160bar
SL-PU 94″

– 50*C
110*C
max.0.4m/s
max.160bar
LT-PU 94

150x80 - 2025-04-23T131448.335
min.Temp max.Temp max. Speed max. Pressure Material
– 30*C
110*C
max.0.4m/s
max.160bar
NBR 85

– 20*C
150*C
max.0.4m/s
max.160bar
H-NBR 85

– 20*C
220*C
max.0.4m/s
max.160bar
FPM 82

– 45*C
130* C
max.0.4m/s
max.160bar
EPDM 85

– 60*C
200*C
max.0.4m/s
max.120bar
MVQ 85


SWK216

650x100 21
  • Primary Application
  • Application Limits
  • Not applicable
150x80 - 2025-04-23T131837.444
min.Temp max.Temp max. Speed max. Pressure Material
20°C
115°C
max.0.5m/s
max.250bar
HPU 94
POM/PTFE/PEEK
20°C
115°C
max.0.5m/s
max.250bar
HPU 55’D
POM/PTFE/PEEK
20°C
110°C
max.0.7m/s
max.250bar
SL-PU 94
POM/PTFE/PEEK
50°C
110°C
max.0.5m/s
max.250bar
LT-PU 94
POM/PTFE/PEEK
150x80 - 2025-04-23T132110.359
min.Temp max.Temp max. Speed max. Pressure Material
– 30*C
– 110*C
max.0,5m/s
max.200bar
NBR 85
POM/PTFE/PEEK
– 20*C
– 150*C
max.0,5m/s
max.200bar
H-NBR 85
POM/PTFE/PEEK
– 20*C
– 220*C
max.0,5m/s
max.200bar
FPM 82
POM/PTFE/PEEK
– 45*C
– 130*C
max.0,5m/s
max.200bar
EPDM 85
POM/PTFE/PEEK
– 60*C
– 200*C
max.0,5m/s
max.200bar
MVQ 85
POM/PTFE/PEEK

SWK117

650x100 22
  • Primary Application
  • Application Limits
  • Not applicable
150x80 - 2025-04-23T134730.393
min.Temp max.Temp max. Speed max. Pressure Material
– 20*C
115*C
max.0.4m/s
max.400bar
HPU 94
NBR70,FPM75
– 20*C
115*C
max.0.4m/s
max.400bar
HPU 55°D
NBR70,FPM75
– 20*C
110*C
max.0.5m/s
max.400bar
SL-PU 94
NBR70,FPM75
– 20*C
110*C
max.0.4m/s
max.400bar
LT-PU 94
NBR70,FPM75
150x80 - 2025-04-23T134940.125
min.Temp max.Temp max. Speed max. Pressure Material
– 30*C
110*C
max.0,5m/s
max.160bar
NBR 85
NBR70,FPM75
– 20*C
150*C
max.0,5m/s
max.160bar
H-NBR 85′
NBR70,FPM75
– 20*C
220*C
max.0,5m/s
max.160bar
FPM 82
NBR70,FPM75
– 45*C
130*C
max.0,5m/s
max.160bar
EPDM 85
NBR70,FPM75
– 50*C
200* C
max.0,4m/s
max.120bar
MVQ 85
NBR70,FPM75

SWK118

650x100 2 3
  • Primary Application
  • Application Limits
  • Not applicable
150x80 - 2025-04-23T135235.510
min.Temp max.Temp max. Speed max. Pressure Material
– 200*C
260*C
max.15m/s
max.100bar
PTFE pure
1.4310
– 200*C
260*C
max.15m/s
max.160bar
PTFE 1 glass
1.4310
– 200*C
260*C
max.15m/s
max.160bar
PTFE 2 bronze
1.4310
– 200*C
260*C
max.15m/s
max.100bar
PTFE carbone
1.4310
min.Temp max.Temp max. Speed max. Pressure Material
– 200*C
260*C
max.15m/s
max.160bar
PTFE D05 turq
1.4310
– 200*C
260*C
max.15m/s
max.160bar
PTFE D05 glass
1.4310
– 200*C
260*C
max.15m/s
max.160bar
PTFE graphite
1.4310
– 200*C
260*C
max.15m/s
max.160bar
PTFE ekonol
1.4310
– 200*C
260*C
max.15m/s
max.160bar
PTFE 25%glass
1.4310

SWK119

650x100 23
  • Primary Application
  • Application Limits
  • Not applicable
150x80 - 2025-04-23T135549.102
min.Temp max.Temp max. Speed max. Pressure Material
– 20*C
115*C
max.0.4m/s
max.400bar
HPU 94″
POM/PTFE/PEEK
– 20*C
115*C
max.0.4m/s
max.400bar
HPU 55’D
POM/PTFE/PEEK
– 20*C
110*C
max.0.5m/s
max.400bar
SL-PU 94
POM/PTFE/PEEK
– 50*C
110*C
max.0.4m/s
max.400bar
LT-PU 94
POM/PTFE/PEEK
150x80 - 2025-04-23T135846.791
min.Temp max.Temp max. Speed max. Pressure Material
30°C
110°C
max.0,5m/s
max.160bar
NBR 85
POM/PTFE/PEEK
20°C
150°C
max.0,5m/s
max.160bar
H-NBR 85
POM/PTFE/PEEK
20°C
220*C
max.0,5m/s
max.160bar
FPM 82
POM/PTFE/PEEK
45°C
130*C
max.0,5m/s
max.160bar
EPDM 85
POM/PTFE/PEEK
60°C
200*C
max.0,4m/s
max.120bar
MVQ 85
POM/PTFE/PEEK

SWK120

650x100 24
  • Primary Application
  • Application Limits
  • Not applicable
150x80 - 2025-04-23T140218.972
min.Temp max.Temp max. Speed max. Pressure Material
– 20*C
115*C
max.0.5m/s
max.400bar
HPU 94″
POM/PTFE/PEEK
– 20*C
115*C
max.0.5m/s
max.400bar
HPU 55’D
POM/PTFE/PEEK
– 20*C
110*C
max.0.7m/s
max.400bar
SL-PU 94
POM/PTFE/PEEK
– 50*C
110*C
max.0.5m/s
max.400bar
LT-PU 94
POM/PTFE/PEEK
min.Temp max.Temp max. Speed max. Pressure Material
30°C
110°C
max.000m/s
max.000bar
NBR 85
–
20°C
150°C
max.000m/s
max.000bar
H-NBR 85
–
20°C
220*C
max.000m/s
max.000bar
FPM 82
–
45°C
130*C
max.000m/s
max.000bar
EPDM 85
–
60°C
200*C
max.000m/s
max.000bar
MVQ 85
–

SWK122

650x100 19 1
  • Primary Application
  • Application Limits
  • Not applicable
150x80 - 2025-04-23T140501.158
min.Temp max.Temp max. Speed max. Pressure Material
– 200*C
260*C
max.1,5m/s
max.400bar
PTFE pure
POM/PTFE/PEEK
– 200*C
260*C
max.1,5m/s
max.450bar
PTFE 1 glass
POM/PTFE/PEEK
– 200*C
260*C
max.1,5m/s
max.450bar
PTFE 2 bronze
POM/PTFE/PEEK
– 200*C
260*C
max.1,5m/s
max.450bar
PTFE carbone
POM/PTFE/PEEK
min.Temp max.Temp max. Speed max. Pressure Material
200°C
260°C
max.000m/s
max.000bar
NBR 85
–
200°C
260°C
max.000m/s
max.000bar
H-NBR 85
–
200°C
260°C
max.000m/s
max.000bar
FPM 82
–
200°C
260°C
max.000m/s
max.000bar
EPDM 85
–
200°C
260°C
max.000m/s
max.000bar
MVQ 85
–

SWK222

650x100 19 1
  • Primary Application
  • Application Limits
  • Not applicable
150x80 - 2025-04-23T150022.587
min.Temp max.Temp max. Speed max. Pressure Material
– 20*C
115*C
max.0.5m/s
max.400bar
HPU 94
POM/PTFE/PEEK
– 20*C
115*C
max.0.5m/s
max.400bar
HPU 55 D
POM/PTFE/PEEK
– 20*C
110*C
max.0.7m/s
max.400bar
SL-PU 94″
POM/PTFE/PEEK
– 50*C
110*C
max.0.5m/s
max.400bar
LT-PU 94″
POM/PTFE/PEEK
150x80 - 2025-04-23T150352.992
min.Temp max.Temp max. Speed max. Pressure Material
-30°C
110°C
max.0,5m/s
max.160bar
NBR 85
POM/PTFE/PEEK
-20°C
150°C
max.0,5m/s
max.160bar
H-NBR 85
POM/PTFE/PEEK
-20°C
220°C
max.0,5m/s
max.160bar
FPM 82
POM/PTFE/PEEK
-45°C
130°C
max.0,5m/s
max.160bar
EPDM 85
POM/PTFE/PEEK
-60°C
200°C
max.0,4m/s
max.120bar
MVQ 85
POM/PTFE/PEEK

SWK123

650x100 21 1
  • Primary Application
  • Application Limits
  • Not applicable
150x80 - 2025-04-23T150718.324
min.Temp max.Temp max. Speed max. Pressure Material
– 20*C
115*C
max.0.4m/s
max.400bar
HPU 94
POM/PTFE/PEEK
– 20*C
115*C
max.0.4m/s
max.400bar
HPU 55 D
POM/PTFE/PEEK
– 20*C
110*C
max.0.5m/s
max.400bar
SL-PU 94″
POM/PTFE/PEEK
– 50*C
110*C
max.0.4m/s
max.400bar
LT-PU 94″
POM/PTFE/PEEK
min.Temp max.Temp max. Speed max. Pressure Material
-30°C
110°C
max.000m/s
max.000bar
NBR 85
–
-20°C
150°C
max.000m/s
max.000bar
H-NBR 85
–
-20°C
220°C
max.000m/s
max.000bar
FPM 82
–
-45°C
130°C
max.000m/s
max.000bar
EPDM 85
–
-60°C
200°C
max.000m/s
max.000bar
MVQ 85
–

SWK123D

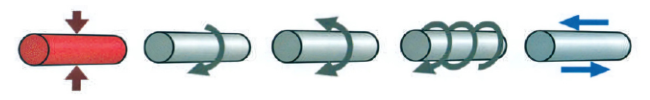

650x100 22 1
  • Primary Application
  • Application Limits
  • Not applicable
150x80 - 2025-04-23T151310.302
min.Temp max.Temp max. Speed max. Pressure Material
– 20*C
115*C
max.0.4m/s
max.400bar
HPU 94
POM/PTFE/PEEK
– 20*C
115*C
max.0.4m/s
max.400bar
HPU 55 D
POM/PTFE/PEEK
– 20*C
110*C
max.0.5m/s
max.400bar
SL-PU 94″
POM/PTFE/PEEK
– 50*C
110*C
max.0.4m/s
max.400bar
LT-PU 94″
POM/PTFE/PEEK
min.Temp max.Temp max. Speed max. Pressure Material
-30°C
110°C
max.000m/s
max.000bar
NBR 85
–
-20°C
150°C
max.000m/s
max.000bar
H-NBR 85
–
-20°C
220°C
max.000m/s
max.000bar
FPM 82
–
-45°C
130°C
max.000m/s
max.000bar
EPDM 85
–
-60°C
200°C
max.000m/s
max.000bar
MVQ 85
–

SWK123H

650x100 22 1
  • Primary Application
  • Application Limits
  • Not applicable
150x80 - 2025-04-23T151656.486
min.Temp max.Temp max. Speed max. Pressure Material
– 20*C
115*C
max.0.4m/s
max.400bar
HPU 94
POM/PTFE/PEEK
– 20*C
115*C
max.0.4m/s
max.400bar
HPU 55 D
POM/PTFE/PEEK
– 20*C
110*C
max.0.5m/s
max.400bar
SL-PU 94″
POM/PTFE/PEEK
– 50*C
110*C
max.0.4m/s
max.400bar
LT-PU 94″
POM/PTFE/PEEK
min.Temp max.Temp max. Speed max. Pressure Material
-30°C
110°C
max.000m/s
max.000bar
NBR 85
–
-20°C
150°C
max.000m/s
max.000bar
H-NBR 85
–
-20°C
220°C
max.000m/s
max.000bar
FPM 82
–
-45°C
130°C
max.000m/s
max.000bar
EPDM 85
–
-60°C
200°C
max.000m/s
max.000bar
MVQ 85
–

SWK123N

650x100 22 1
  • Primary Application
  • Application Limits
  • Not applicable
150x80 - 2025-04-23T151949.457
min.Temp max.Temp max. Speed max. Pressure Material
– 20*C
115*C
max.0.5m/s
max.400bar
HPU 94
–
– 20*C
115*C
max.0.5m/s
max.400bar
HPU 55 D
–
– 20*C
110*C
max.0.7m/s
max.400bar
SL-PU 94″
–
– 50*C
110*C
max.0.5m/s
max.400bar
LT-PU 94″
–
150x80 - 2025-04-23T152239.822
min.Temp max.Temp max. Speed max. Pressure Material
-30°C
110°C
max.0,5m/s
max.260bar
NBR 85
–
-20°C
150°C
max.260m/s
max.260bar
H-NBR 85
–
-20°C
220°C
max.0,5m/s
max.260bar
FPM 82
–
-45°C
130°C
max.0,5m/s
max.260bar
EPDM 85
–
-60°C
200°C
max.0,4m/s
max.220bar
MVQ 85
–

SWK124

650x100 22 1
  • Primary Application
  • Application Limits
  • Not applicable
150x80 - 2025-04-23T152513.764
min.Temp max.Temp max. Speed max. Pressure Material
– 200*C
260*C
max.10m/s
max.400bar
PTFE pure
NBR70°/FPM75
– 200*C
260*C
max.10m/s
max.400bar
PTFE 1 glass
NBR70°/FPM75
– 200*C
260*C
max.10m/s
max.400bar
PTFE 2 bronze
NBR70°/FPM75
– 200*C
260*C
max.10m/s
max.400bar
PTFE carbone
NBR70°/FPM75
min.Temp max.Temp max. Speed max. Pressure Material
-200°C
260°C
max.10m/s
max.400bar
PTFED05turqu
NBR70/FPM75
-200°C
260°C
max.10m/s
max.400bar
PTFE D05glass
NBR70/FPM75
-200°C
260°C
max.10m/s
max.260bar
PTFE graphite
NBR70/FPM75
-200°C
260°C
max.10m/s
max.400bar
PTFE ekonol
NBR70/FPM75
-200°C
260°C
max.10m/s
max.400bar
PTFE 25%glass
NBR70/FPM75

SWK125

Untitled design 10
  • Primary Application
  • Application Limits
  • Not applicable
150x80 - 2025-04-23T152737.976
min.Temp max.Temp max. Speed max. Pressure Material
– 20*C
115*C
max.000m/s
max.000bar
HPU 94
–
– 20*C
115*C
max.000m/s
max.000bar
HPU 55*D
–
– 20*C
110*C
max.000m/s
max.000bar
SL-PU 94′
–
– 50*C
110*C
max.000m/s
max.000bar
LT-PU 94
–
150x80 - 2025-04-23T152946.806
min.Temp max.Temp max. Speed max. Pressure Material
-30°C
110°C
max.000m/s
max.000bar
NBR 85
–
-20°C
150°C
max.000m/s
max.000bar
H-NBR 85
–
-20°C
220°C
max.000m/s
max.000bar
FPM 82
–
-45°C
130°C
max.000m/s
max.000bar
EPDM 85′
–
-60°C
200°C
max.000m/s
max.000bar
MVQ 85
–

SWK126

650x100 22 1
  • Primary Application
  • Application Limits
  • Not applicable
150x80 - 2025-04-23T153222.502
min.Temp max.Temp max. Speed max. Pressure Material
– 20*C
115*C
max.000m/s
max.000bar
HPU 94
–
– 20*C
115*C
max.000m/s
max.000bar
HPU 55*D
–
– 20*C
110*C
max.000m/s
max.000bar
SL-PU 94
–
– 50*C
110*C
max.000m/s
max.000bar
LT-PU 94
–
150x80 - 2025-04-23T153433.823
min.Temp max.Temp max. Speed max. Pressure Material
-30°C
110°C
max.0,4m/s
max.160bar
NBR 85
–
-20°C
150°C
max.0,4m/s
max.160bar
H-NBR 85
–
-20°C
220°C
max.0,4m/s
max.160bar
FPM 82
–
-45°C
130°C
max.0,4m/s
max.160bar
EPDM 85
–
-60°C
200°C
max.0,4m/s
max.120bar
MVQ 85
–

SWK127

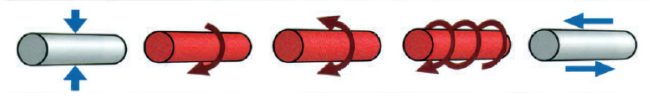

650x100 25
  • Primary Application
  • Application Limits
  • Not applicable
150x80 - 2025-04-23T153706.335
min.Temp max.Temp max. Speed max. Pressure Material
– 200*C
260*C
max.10m/s
max.400bar
PTFE pure
NBR 85°
– 200*C
260*C
max.10m/s
max.400bar
PTFE 1 glass
H-NBR 85
– 200*C
260*C
max.10m/s
max.400bar
PTFE 2 bronze
FPM 82
– 200*C
260*C
max.10m/s
max.400bar
PTFE carbone
EPDM 85
min.Temp max.Temp max. Speed max. Pressure Material
-200°C
260°C
max.10m/s
max.400bar
PTFE D05 turq
–
-200°C
260°C
max.10m/s
max.400bar
PTFE D05glass
–
-200°C
260°C
max.10m/s
max.400bar
PTFE graphite
–
-200°C
260°C
max.10m/s
max.400bar
PTFE ekonol
–
-200°C
260°C
max.10m/s
max.400bar
PTFE 25%glass
–

SWK138

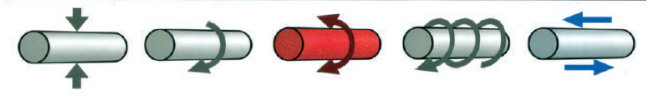

650x100 26
  • Primary Application
  • Application Limits
  • Not applicable
150x80 - 2025-04-23T153927.854
min.Temp max.Temp max. Speed max. Pressure Material
– 200*C
260*C
max.10m/s
max.400bar
PTFE pure
NBR 85°
– 200*C
260*C
max.10m/s
max.400bar
PTFE 1 glass
H-NBR 85
– 200*C
260*C
max.10m/s
max.400bar
PTFE 2 bronze
FPM 82
– 200*C
260*C
max.10m/s
max.400bar
PTFE carbone
EPDM 85
min.Temp max.Temp max. Speed max. Pressure Material
-200°C
260°C
max.10m/s
max.400bar
PTFE D05 turq
–
-200°C
260°C
max.10m/s
max.400bar
PTFE D05glass
–
-200°C
260°C
max.10m/s
max.400bar
PTFE graphite
–
-200°C
260°C
max.10m/s
max.400bar
PTFE ekonol
–
-200°C
260°C
max.10m/s
max.400bar
PTFE 25%glass
–

SWK238

Untitled design 10
  • Primary Application
  • Application Limits
  • Not applicable
150x80 - 2025-04-23T154201.604
min.Temp max.Temp max. Speed max. Pressure Material
– 200*C
260*C
max.15m/s
max.100bar
PTFE pure
1.4310
– 200*C
260*C
max.15m/s
max.160bar
PTFE 1 glass
1.4310
– 200*C
260*C
max.15m/s
max.160bar
PTFE 2 bronze
1.4310
– 200*C
260*C
max.15m/s
max.100bar
PTFE carbone
1.4310
min.Temp max.Temp max. Speed max. Pressure Material
-200°C
260°C
max.15m/s
max.100bar
PTFE D05 turq
1.4310
-200°C
260°C
max.15m/s
max.160bar
PTFE D05glass
1.4310
-200°C
260°C
max.15m/s
max.160bar
PTFE graphite
1.4310
-200°C
260°C
max.15m/s
max.160bar
PTFE ekonol
1.4310
-200°C
260°C
max.15m/s
max.160bar
PTFE 25%glass
1.4310

SWK139

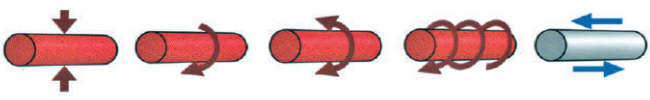

650x100 27
  • Primary Application
  • Application Limits
  • Not applicable
150x80 - 2025-04-23T154453.499
min.Temp max.Temp max. Speed max. Pressure Material
– 20*C
115*C
max.1m/s
max.400bar
HPU 94
NBR70°/FPM75
– 20*C
115*C
max.1m/s
max.400bar
HPU 55’D
NBR70°/FPM75
– 20*C
110*C
max.1.4m/s
max.400bar
SL-PU 94″
NBR70°/FPM75
– 50*C
110*C
max.1m/s
max.400bar
LT-PU 94″
NBR70°/FPM75
min.Temp max.Temp max. Speed max. Pressure Material
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–

SWK140

Untitled design 10
  • Primary Application
  • Application Limits
  • Not applicable
150x80 - 2025-04-23T154726.521
min.Temp max.Temp max. Speed max. Pressure Material
– 20*C
260*C
max.0.5m/s
max.400bar
HPU 94
–
– 20*C
260*C
max.0.5m/s
max.400bar
HPU 55’D
–
– 200*C
260*C
max.0.5m/s
max.400bar
SL-PU 94
–
– 200*C
260*C
max.0.5m/s
max.400bar
LT-PU 94″
–
150x80 - 2025-04-23T154934.320
min.Temp max.Temp max. Speed max. Pressure Material
– 30*C
110*C
max.0,4m/s
max.160bar
NBR 85
–
– 20*C
150°C
max.0,4m/s
max.160bar
H-NBR
–
– 20*C
220°C
max.0,4m/s
max.160bar
FPM 82
–
– 45*C
130°C
max.0,4m/s
max.160bar
EPDM 85
–
-60°C
200°C
max.0,3m/s
max.120bar
MVQ 85
–

SWK141

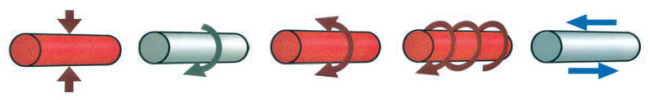

650x100 21 1
  • Primary Application
  • Application Limits
  • Not applicable
150x80 - 2025-04-23T155148.656
min.Temp max.Temp max. Speed max. Pressure Material
– 200*C
260*C
max.10m/s
max.400bar
PTFE pure
NBR70°/FPM75
– 200*C
260*C
max.10m/s
max.400bar
PTFE 1 glass
NBR70°/FPM75
– 200*C
260*C
max.10m/s
max.400bar
PTFE 2 bronze
NBR70°/FPM75
– 200*C
260*C
max.10m/s
max.400bar
PTFE carbone
NBR70°/FPM75
min.Temp max.Temp max. Speed max. Pressure Material
– 200*C
260*C
max.10m/s
max.400bar
PTFE D05turqu
NBR70/FPM75
– 200*C
260*C
max.10m/s
max.400bar
PTFE D05glass
NBR70/FPM75
– 200*C
260*C
max.10m/s
max.400bar
PTFE graphite
NBR70/FPM75
– 200*C
260*C
max.10m/s
max.400bar
PTFE ekonol
NBR70/FPM75
– 200*C
260*C
max.10m/s
max.400bar
PTFE 25%glass
NBR70/FPM75

SWK142

650x100 18
  • Primary Application
  • Application Limits
  • Not applicable
150x80 - 2025-04-23T155959.778
min.Temp max.Temp max. Speed max. Pressure Material
– 200*C
260*C
max.10m/s
max.400bar
PTFE pure
NBR70/FPM75
– 200*C
260*C
max.10m/s
max.400bar
PTFE 1 glass
NBR70/FPM75
– 200*C
260*C
max.10m/s
max.400bar
PTFE 2 bronze
NBR70/FPM75
– 200*C
260*C
max.10m/s
max.400bar
PTFE carbone
NBR70/FPM75
min.Temp max.Temp max. Speed max. Pressure Material
– 200*C
260*C
max.10m/s
max.400bar
PTFE D05turqu
NBR70/FPM75
– 200*C
260*C
max.10m/s
max.400bar
PTFE D05glass
NBR70/FPM75
– 200*C
260*C
max.10m/s
max.400bar
PTFE graphite
NBR70/FPM75
– 200*C
260*C
max.10m/s
max.400bar
PTFE ekonol
NBR70/FPM75
– 200*C
260*C
max.10m/s
max.400bar
PTFE 25%glass
NBR70/FPM75

SWK144

650x100 18

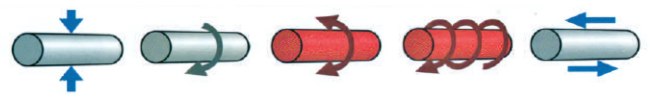

  • Primary Application
  • Application Limits
  • Not applicable
150x80 - 2025-04-23T164750.887
min.Temp max.Temp max. Speed max. Pressure Material
– 20*C
115*C
max.0.4m/s
max.400bar
HPU 94
NBR 85°
– 20*C
115*C
max.0.4m/s
max.400bar
HPU 55’D
H-NBR 85
– 20*C
110*C
max.0.5m/s
max.400bar
SL-PU 94
H-NBR 85
– 40*C
110*C
max.0.4m/s
max.400bar
LT-PU 94″
H-NBR 85
min.Temp max.Temp max. Speed max. Pressure Material
–
–
–
–
–

SWK143

650x100 18

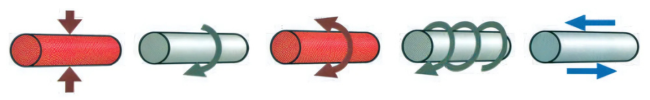

  • Primary Application
  • Application Limits
  • Not applicable
150x80 - 2025-04-23T165038.084
min.Temp max.Temp max. Speed max. Pressure Material
– 20*C
115*C
max.0.4m/s
max.400bar
HPU 94
NBR70/FPM75
– 20*C
115*C
max.0.4m/s
max.400bar
HPU 55’D
NBR70/FPM75
– 20*C
110*C
max.0.5m/s
max.400bar
SL-PU 94
NBR70/FPM75
– 50*C
110*C
max.0.4m/s
max.400bar
LT-PU 94″
NBR70/FPM75
min.Temp max.Temp max. Speed max. Pressure Material
– 30*C
110*C
max.0.5m/s
max.160bar
NBR 85
NBR70/FPM75
– 20*C
150°C
max.0.5m/s
max.160bar
H-NBR
NBR70/FPM75
– 20*C
220°C
max.0.5m/s
max.160bar
FPM 82
NBR70/FPM75
– 45*C
130°C
max.0.5m/s
max.160bar
EPDM 85
NBR70/FPM75
-60°C
200°C
max.0.4m/s
max.120bar
MVQ 85
NBR70/FPM75

SWK145

650x100 18
  • Primary Application
  • Application Limits
  • Not applicable
150x80 - 2025-04-23T165401.678
min.Temp max.Temp max. Speed max. Pressure Material
– 20*C
115*C
max.0.4m/s
max.400bar
HPU 94
–
– 20*C
115*C
max.0.4m/s
max.400bar
HPU 55’D
–
– 20*C
110*C
max.0.5m/s
max.400bar
SL-PU 94
–
– 50*C
110*C
max.0.4m/s
max.400bar
LT-PU 94″
–
150x80 - 2025-04-23T171558.445
min.Temp max.Temp max. Speed max. Pressure Material
– 30*C
110*C
max.0,5m/s
max.160bar
NBR 85
–
– 20*C
150°C
max.0,5m/s
max.160bar
H-NBR
–
– 20*C
220°C
max.0,5m/s
max.160bar
FPM 82
–
– 45*C
130°C
max.0,5m/s
max.160bar
EPDM 85
–
-60°C
200°C
max.0,4m/s
max.120bar
MVQ 85
–

SWK199

650x100 22 2
  • Primary Application
  • Application Limits
  • Not applicable
150x80 - 2025-04-23T171906.042
min.Temp max.Temp max. Speed max. Pressure Material
– 20*C
115*C
max.0.4m/s
max.400bar
HPU 94
–
– 20*C
115*C
max.0.4m/s
max.400bar
HPU 55’D
–
– 20*C
110*C
max.0.5m/s
max.400bar
SL-PU 94
–
– 50*C
110*C
max.0.4m/s
max.400bar
LT-PU 94″
–
150x80 - 2025-04-23T172228.152
min.Temp max.Temp max. Speed max. Pressure Material
– 30*C
110*C
max.0,5m/s
max.160bar
NBR 85
–
– 20*C
150°C
max.0,5m/s
max.160bar
H-NBR
–
– 20*C
220°C
max.0,5m/s
max.160bar
FPM 82
–
– 45*C
130°C
max.0,5m/s
max.160bar
EPDM 85
–
-60°C
200°C
max.0,4m/s
max.120bar
MVQ 85
–

SWK106

650x100 22 2
  • Primary Application
  • Application Limits
  • Not applicable

Menu

Follow Us

Linkedin-in Instagram

Our Products

  • Rotary Seals
  • Piston Seals
  • Rod Seals
  • Wipers
  • O Ring
  • Guide Rings
  • Back - Up Rings

Location

Factory timings

  • Monday:- 9:30AM to 6:00PM
  • Tuesday:- 9:30AM to 6:00PM
  • Wednesday:- 9:30AM to 6:00PM
  • Thursday:- 9:30AM to 6:00PM
  • Friday:- 9:30AM to 6:00PM
  • Saturday:- 9:30AM to 6:00PM
  • Sunday:- Closed

© 2025 Seal Well Pvt Ltd | All Rights Reserved | Website Developed by EchoPx.com
